The RNN forward pass, animated
One hidden state, carried from step to step, with the same weights reused every time. The animation makes that second part obvious in a way the equations never quite do.
Made in October 2020 for the NLP sessions of the Data Science pour l’Actuaire course at the Institut des Actuaires. Left online because the picture has not aged, even if the frameworks around it have.
A recurrent network reads a sequence one element at a time. At step \(t\) it takes the current input \(x_t\) and the hidden state \(h_{t-1}\) left over from the previous step, and produces a new hidden state:
\[h_t = \tanh(W_x x_t + W_h h_{t-1} + b)\]That is the entire idea. The hidden state is the network’s only memory of everything it has read so far, and it is a fixed-size vector. That is both why RNNs handle sequences of any length and why they forget.

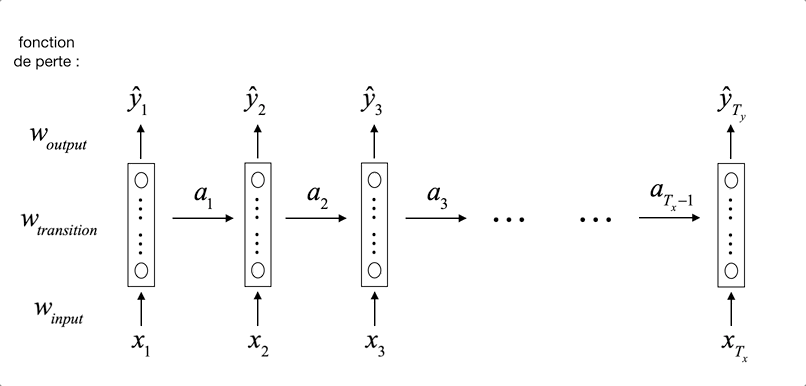

The part worth watching in the animation is the weights. \(W_x\) and \(W_h\) do not change as the animation moves right: the same matrices are applied at every step. An unrolled RNN looks like a deep network, but it is one small network applied repeatedly. That weight sharing is what makes the parameter count independent of sequence length, and it is also what makes the gradients behave badly. See backpropagation through time.
The original notebook export, if you want it: RNN forward.
